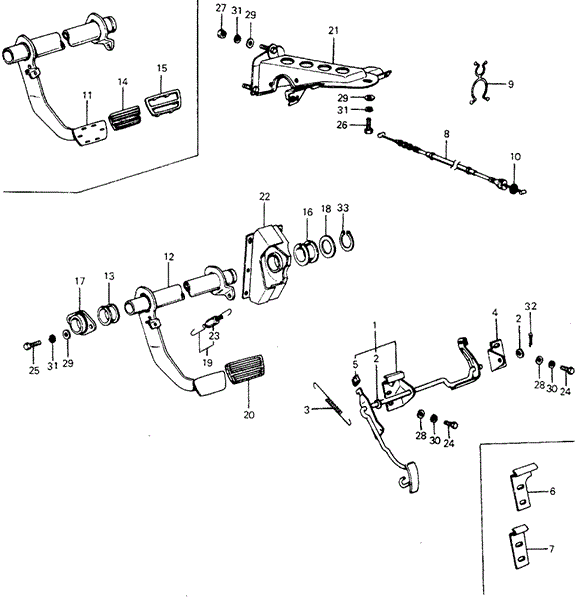

BRACKET, PEDAL in CHASSIS/HMT PEDAL for 1975 Honda CIVIC 1200 HATCHBACK

BRACKET, PEDAL in CHASSIS/HMT PEDAL for 1975 Honda CIVIC 1200 HATCHBACK #1
25
  • BOLT, HEX. (8X12) - $0.47
21
  • BRACKET, PEDAL
30
  • WASHER, SPRING (6MM) - $0.43
32
  • PIN, SPLIT (2.0X35) - $0.54
5
  • STOPPER, ACCELERATOR PEDAL
17
  • HOLDER, PEDAL SHAFT
22
  • BRACKET, MASTER CYLINDER
31
  • WASHER, SPRING (8MM) - $0.38
27
  • NUT, HEX. (8MM) - $0.43
29
  • WASHER, PLAIN (8MM) - $0.79
31
  • WASHER, SPRING (8MM) - $0.38
29
  • WASHER, PLAIN (8MM) - $0.79
13
  • BUSH, PEDAL
10
  • SEAL, THROTTLE CABLE
33
  • CIRCLIP, OUTER (32MM) - $0.76
15
  • GARNISH, PEDAL PAD
14
  • PAD, PEDAL
1
  • PEDAL, ACCELERATOR
28
  • WASHER, PLAIN (6MM) - $0.25
28
  • WASHER, PLAIN (6MM) - $0.25
19
  • SPRING, PEDAL RETURN
23
  • COVER, RETURN SPRING
24
  • BOLT, HEX. (6X16) - $0.56
26
  • BOLT, HEX. (8X16) - $0.60
29
  • WASHER, PLAIN (8MM) - $0.79
8
  • CABLE ASSY., THROTTLE
18
  • WASHER, PEDAL
30
  • WASHER, SPRING (6MM) - $0.43
31
  • WASHER, SPRING (8MM) - $0.38
9
  • CLIP, THROTTLE WIRE
16
  • BUSH, MASTER CYLINDER BRACKET
2
  • WASHER, ACCELERATOR PEDAL - $1.50
2
  • WASHER, ACCELERATOR PEDAL - $1.50
11
  • PEDAL, BRAKE
24
  • BOLT, HEX. (6X16) - $0.56
3
  • SPRING, ACCELERATOR PEDAL
No. Part # Part # / Description Qty Req. List Price Price
1 17810-634-672 17810-634-672 / PEDAL, ACCELERATOR

1 - -
2 17812-SA7-010 17812-SA7-010 / WASHER, ACCELERATOR PEDAL

2 $2.08 $1.50
3 17814-634-000 17814-634-000 / SPRING, ACCELERATOR PEDAL

1 - -
5 17832-611-000 17832-611-000 / STOPPER, ACCELERATOR PEDAL

1 - -
8 17910-634-673 17910-634-673 / CABLE ASSY., THROTTLE

1 - -
9 17916-634-670 17916-634-670 / CLIP, THROTTLE WIRE

1 - -
10 17921-538-010 17921-538-010 / SEAL, THROTTLE CABLE

1 - -
11 46501-634-773 46501-634-773 / PEDAL, BRAKE

1 - -
13 46504-634-670 46504-634-670 / BUSH, PEDAL

1 - -
14 46508-581-300 46508-581-300 / PAD, PEDAL

1 - -
15 46509-581-300 46509-581-300 / GARNISH, PEDAL PAD

1 - -
16 46509-634-670 46509-634-670 / BUSH, MASTER CYLINDER BRACKET

1 - -
17 46510-634-770 46510-634-770 / HOLDER, PEDAL SHAFT

1 - -
18 46513-634-670 46513-634-670 / WASHER, PEDAL

2 - -
19 46530-634-671 46530-634-671 / SPRING, PEDAL RETURN

1 - -
21 46590-634-671 46590-634-671 / BRACKET, PEDAL

1 - -
22 46595-634-671 46595-634-671 / BRACKET, MASTER CYLINDER

1 - -
23 46532-634-000 46532-634-000 / COVER, RETURN SPRING

1 - -
24 92101-06016-0H 92101-06016-0H / BOLT, HEX. (6X16)

7 $0.78 $0.56
25 92101-08012-0H 92101-08012-0H / BOLT, HEX. (8X12)

2 $0.78 $0.47
26 92101-08016-0H 92101-08016-0H / BOLT, HEX. (8X16)

3 $0.83 $0.60
27 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

7 $0.60 $0.43
28 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

4 $0.35 $0.25
29 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

4 $1.10 $0.79
30 94111-06800 94111-06800 / WASHER, SPRING (6MM)

4 $0.60 $0.43
31 94111-08800 94111-08800 / WASHER, SPRING (8MM)

4 $0.53 $0.38
32 94201-20350 94201-20350 / PIN, SPLIT (2.0X35)

1 $0.75 $0.54
33 94510-32000 94510-32000 / CIRCLIP, OUTER (32MM)

1 $1.05 $0.76
