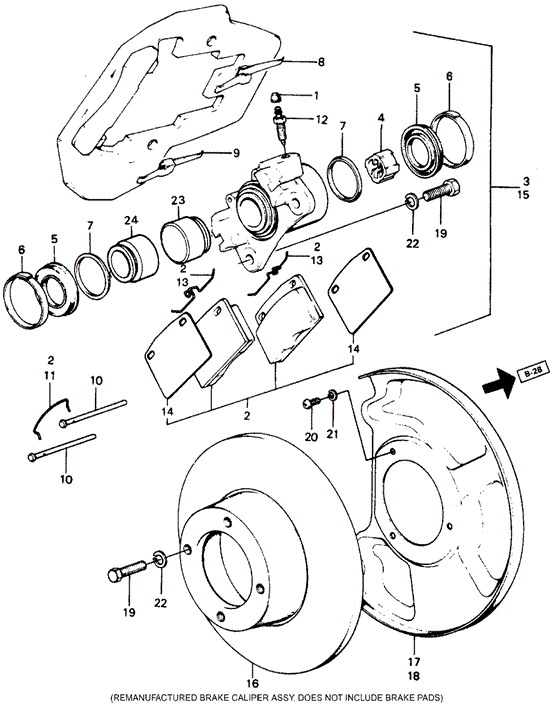

CALIPER ASSY., L. in CHASSIS/DISK BRAKE ('75-'76) for 1975 Honda CIVIC 1200 HATCHBACK

CALIPER ASSY., L. in CHASSIS/DISK BRAKE ('75-'76) for 1975 Honda CIVIC 1200 HATCHBACK #1
6
  • RING, RETAINING
1
  • CAP, BLEEDER SCREW - $2.09
2
  • BRAKE PAD KIT, DISK
  • BRAKE PAD KIT, DISK
5
  • BOOT, PISTON
16
  • DISK, FR. BRAKE
2
  • BRAKE PAD KIT, DISK
  • BRAKE PAD KIT, DISK
22
  • WASHER, SPRING (10MM) - $0.46
4
  • RING, BIAS
8
  • SPRING A, YOKE
6
  • RING, RETAINING
5
  • BOOT, PISTON
15
  • CALIPER ASSY., L. - $440.30
13
  • SPRING, PAD
7
  • SEAL, PISTON - $14.24
21
  • WASHER, SPRING (6MM) - $0.43
10
  • PIN, PAD RETAINING
23
  • PISTON A
19
  • BOLT, HEX. (10X26)
10
  • PIN, PAD RETAINING
24
  • PISTON B
18
  • SPLASH GUARD, L. FR. BRAKE
12
  • SCREW, BLEEDER
7
  • SEAL, PISTON - $14.24
11
  • CLIP, PAD RETAINING
9
  • SPRING B, YOKE
3
  • CALIPER ASSY., R. - $234.82
14
  • SHIM, BRAKE PAD
2
  • BRAKE PAD KIT, DISK
  • BRAKE PAD KIT, DISK
14
  • SHIM, BRAKE PAD
13
  • SPRING, PAD
22
  • WASHER, SPRING (10MM) - $0.46
20
  • SCREW, PAN (6X12) - $0.43
17
  • SPLASH GUARD, R. FR. BRAKE
19
  • BOLT, HEX. (10X26)
No. Part # Part # / Description Qty Req. List Price Price
1 43353-548-003 43353-548-003 / CAP, BLEEDER SCREW

2 $2.90 $2.09
2 45022-659-317 45022-659-317 / BRAKE PAD KIT, DISK

1 - -
2 45022-659-317 45022-659-317 / BRAKE PAD KIT, DISK

1 - -
3 45210-657-672 45210-657-672 / CALIPER ASSY., R.

1 $326.13 $234.82
4 45213-579-013 45213-579-013 / RING, BIAS

2 - -
5 45214-579-003 45214-579-003 / BOOT, PISTON

4 - -
6 45215-579-003 45215-579-003 / RING, RETAINING

4 - -
7 45217-579-003 45217-579-003 / SEAL, PISTON

4 $19.78 $14.24
8 45218-659-003 45218-659-003 / SPRING A, YOKE

2 - -
9 45219-659-003 45219-659-003 / SPRING B, YOKE

2 - -
10 45220-657-671 45220-657-671 / PIN, PAD RETAINING

4 - -
11 45222-579-013 45222-579-013 / CLIP, PAD RETAINING

2 - -
12 45224-533-004 45224-533-004 / SCREW, BLEEDER

2 - -
13 45227-659-003 45227-659-003 / SPRING, PAD

4 - -
14 45228-659-023 45228-659-023 / SHIM, BRAKE PAD

4 - -
15 45230-657-672 45230-657-672 / CALIPER ASSY., L.

1 $611.53 $440.30
16 45251-634-921 45251-634-921 / DISK, FR. BRAKE

2 - -
17 45255-634-920 45255-634-920 / SPLASH GUARD, R. FR. BRAKE

1 - -
18 45256-634-920 45256-634-920 / SPLASH GUARD, L. FR. BRAKE

1 - -
19 90107-579-000 90107-579-000 / BOLT, HEX. (10X26)

12 - -
20 93500-06012-0A 93500-06012-0A / SCREW, PAN (6X12)

4 $0.60 $0.43
21 94111-06800 94111-06800 / WASHER, SPRING (6MM)

4 $0.60 $0.43
22 94111-10800 94111-10800 / WASHER, SPRING (10MM)

4 $0.63 $0.46
23 45212-579-003 45212-579-003 / PISTON A

2 - -
24 45216-579-003 45216-579-003 / PISTON B

2 - -
