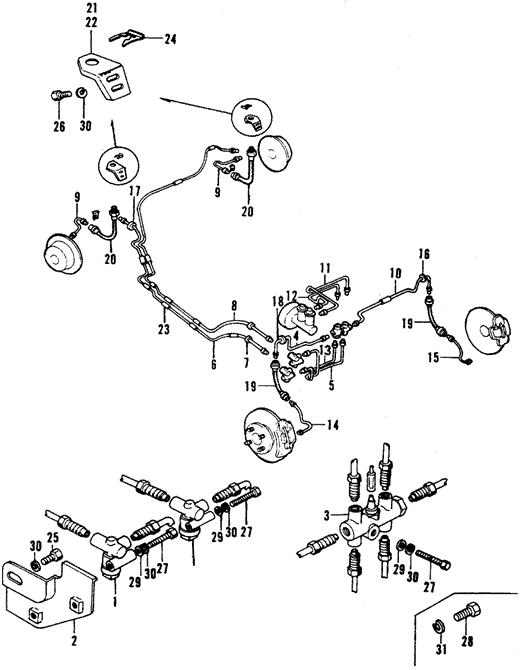

VALVE, PROPORTIONING in CHASSIS/BRAKE HOSE - BRAKE PIPE for 1975 Honda CIVIC 1200 HATCHBACK

VALVE, PROPORTIONING in CHASSIS/BRAKE HOSE - BRAKE PIPE for 1975 Honda CIVIC 1200 HATCHBACK #1
9
  • PIPE E, BRAKE
26
  • BOLT, HEX. (6X16) - $0.56
11
  • PIPE O, BRAKE
18
  • GROMMET A, BRAKE PIPE
3
  • SWITCH, BRAKE WARNING
27
  • BOLT, HEX. (6X35) - $0.67
17
  • GROMMET, BRAKE PIPE
13
  • PIPE Q, BRAKE
19
  • HOSE, FR. BRAKE (NICHIRIN)
7
  • GROMMET, BRAKE PIPE
4
  • PIPE A, BRAKE
28
  • BOLT, HEX. (8X12) - $0.47
20
  • HOSE, RR. BRAKE (NICHIRIN)
1
  • VALVE, PROPORTIONING
8
  • PIPE D, BRAKE
9
  • PIPE E, BRAKE
20
  • HOSE, RR. BRAKE (NICHIRIN)
2
  • BRACKET, PROPORTIONING VALVE
23
  • TUBE B, PIPE PROTECTOR
30
  • WASHER, SPRING (6MM) - $0.43
6
  • PIPE C, BRAKE
10
  • PIPE F, BRAKE
28
  • BOLT, HEX. (8X12) - $0.47
14
  • PIPE G, R. BRAKE
27
  • BOLT, HEX. (6X35) - $0.67
29
  • WASHER, PLAIN (6MM) - $0.25
31
  • WASHER, SPRING (8MM) - $0.38
29
  • WASHER, PLAIN (6MM) - $0.25
16
  • GROMMET A, BRAKE PIPE
24
  • CLIP, BRAKE HOSE - $3.30
30
  • WASHER, SPRING (6MM) - $0.43
30
  • WASHER, SPRING (6MM) - $0.43
15
  • PIPE G, L. BRAKE
30
  • WASHER, SPRING (6MM) - $0.43
21
  • BRACKET, R. RR. BRAKE HOSE
27
  • BOLT, HEX. (6X35) - $0.67
5
  • PIPE B, BRAKE
30
  • WASHER, SPRING (6MM) - $0.43
22
  • BRACKET, L. RR. BRAKE HOSE
19
  • HOSE, FR. BRAKE (NICHIRIN)
12
  • PIPE P, BRAKE
No. Part # Part # / Description Qty Req. List Price Price
1 46211-634-671 46211-634-671 / VALVE, PROPORTIONING

2 - -
2 46215-634-672 46215-634-672 / BRACKET, PROPORTIONING VALVE

1 - -
3 46220-634-661 46220-634-661 / SWITCH, BRAKE WARNING

1 - -
4 46310-634-671 46310-634-671 / PIPE A, BRAKE

1 - -
5 46320-634-672 46320-634-672 / PIPE B, BRAKE

1 - -
6 46330-634-672 46330-634-672 / PIPE C, BRAKE

1 - -
7 46332-634-000 46332-634-000 / GROMMET, BRAKE PIPE

1 - -
8 46340-634-672 46340-634-672 / PIPE D, BRAKE

1 - -
9 46350-634-010 46350-634-010 / PIPE E, BRAKE

2 - -
10 46360-634-671 46360-634-671 / PIPE F, BRAKE

1 - -
11 46366-634-671 46366-634-671 / PIPE O, BRAKE

1 - -
12 46367-634-671 46367-634-671 / PIPE P, BRAKE

1 - -
13 46368-634-672 46368-634-672 / PIPE Q, BRAKE

1 - -
14 46370-634-921 46370-634-921 / PIPE G, R. BRAKE

1 - -
15 46371-634-921 46371-634-921 / PIPE G, L. BRAKE

1 - -
16 46380-579-300 46380-579-300 / GROMMET A, BRAKE PIPE

2 - -
17 46381-594-300 46381-594-300 / GROMMET, BRAKE PIPE

3 - -
18 46381-611-000 46381-611-000 / GROMMET A, BRAKE PIPE

1 - -
19 46410-634-003P 46410-634-003P / HOSE, FR. BRAKE (NICHIRIN)

2 - -
20 46431-634-003P 46431-634-003P / HOSE, RR. BRAKE (NICHIRIN)

2 - -
21 46435-634-000 46435-634-000 / BRACKET, R. RR. BRAKE HOSE

1 - -
22 46436-634-000 46436-634-000 / BRACKET, L. RR. BRAKE HOSE

1 - -
23 46492-504-000 46492-504-000 / TUBE B, PIPE PROTECTOR

1 - -
24 90651-538-000 90651-538-000 / CLIP, BRAKE HOSE

8 $4.58 $3.30
26 92101-06016-0H 92101-06016-0H / BOLT, HEX. (6X16)

4 $0.78 $0.56
27 92101-06035-0H 92101-06035-0H / BOLT, HEX. (6X35)

3 $0.93 $0.67
28 92101-08012-0H 92101-08012-0H / BOLT, HEX. (8X12)

1 $0.78 $0.47
29 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

3 $0.35 $0.25
30 94111-06800 94111-06800 / WASHER, SPRING (6MM)

7 $0.60 $0.43
31 94111-08800 94111-08800 / WASHER, SPRING (8MM)

1 $0.53 $0.38
