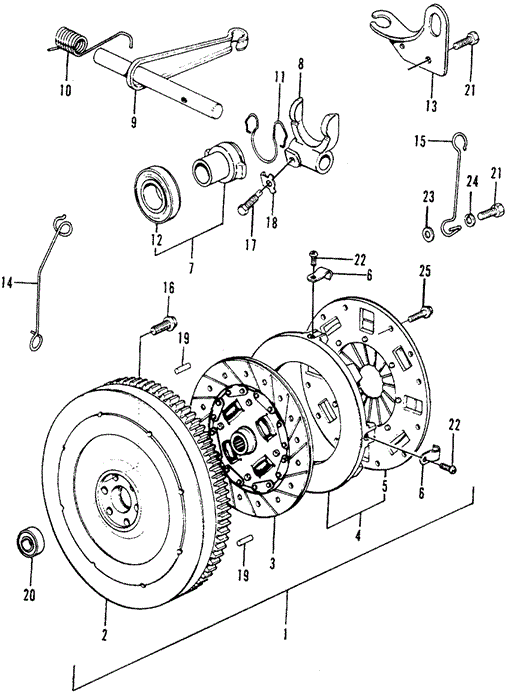

FLYWHEEL in TRANSMISSION - MANUAL/MT CLUTCH - FLYWHEEL for 1973 Honda CIVIC 1200 COUPE

FLYWHEEL in TRANSMISSION - MANUAL/MT CLUTCH - FLYWHEEL for 1973 Honda CIVIC 1200 COUPE #1
5
  • COVER, CLUTCH
24
  • WASHER, SPRING (8MM) - $0.38
19
  • ROLLER (6x13)
9
  • SHAFT, CLUTCH RELEASE
6
  • SPRING, CLUTCH STOPPER
11
  • CLIP, RELEASE ARM
15
  • BRACKET, CLUTCH CABLE
  • BRACKET, CLUTCH CABLE
2
  • FLYWHEEL
  • FLYWHEEL
13
  • STAY, CLUTCH WIRE
21
  • BOLT, HEX. (8X20) - $0.64
  • BOLT, HEX. (8X35) - $0.80
23
  • WASHER, PLAIN (8MM) - $0.79
3
  • DISK, FRICTION
  • DISK, FRICTION
  • DISK, FRICTION
22
  • SCREW, PAN (6X10) - $0.41
22
  • SCREW, PAN (6X10) - $0.41
18
  • WASHER, LOCK - $1.88
8
  • ARM A, CLUTCH RELEASE
16
  • BOLT, HEX. (10MM) - $3.92
25
  • BOLT, FLANGE (6X18) - $0.64
20
  • BEARING, CLUTCH PILOT (NTN) - $16.68
6
  • SPRING, CLUTCH STOPPER
7
  • HOLDER, RELEASE BEARING
19
  • ROLLER (6x13)
10
  • SPRING, RELEASE ARM
4
  • PLATE ASSY., PRESSURE
14
  • BRACKET, CLUTCH CABLE
  • HOLDER, CLUTCH WIRE
  • BRACKET, CLUTCH CABLE
21
  • BOLT, HEX. (8X20) - $0.64
  • BOLT, HEX. (8X35) - $0.80
12
  • BEARING, CLUTCH RELEASE (NACHI)
17
  • BOLT, HEX. (8X24) - $3.68
No. Part # Part # / Description Qty Req. List Price Price
2 22100-634-010 22100-634-010 / FLYWHEEL

1 - -
2 22100-673-000 22100-673-000 / FLYWHEEL

1 - -
3 22200-PE0-505 22200-PE0-505 / DISK, FRICTION

1 - -
3 22200-PE0-505 22200-PE0-505 / DISK, FRICTION

1 - -
3 22200-PE0-505 22200-PE0-505 / DISK, FRICTION

1 - -
4 22300-634-010 22300-634-010 / PLATE ASSY., PRESSURE

1 - -
5 22410-634-010 22410-634-010 / COVER, CLUTCH

1 - -
6 22421-634-300 22421-634-300 / SPRING, CLUTCH STOPPER

4 - -
7 22810-PB7-010 22810-PB7-010 / HOLDER, RELEASE BEARING

1 - -
8 22821-PA0-000 22821-PA0-000 / ARM A, CLUTCH RELEASE

1 - -
9 22830-PB7-010 22830-PB7-010 / SHAFT, CLUTCH RELEASE

1 - -
10 22851-634-000 22851-634-000 / SPRING, RELEASE ARM

1 - -
11 22861-634-000 22861-634-000 / CLIP, RELEASE ARM

1 - -
12 22863-634-023 22863-634-023 / BEARING, CLUTCH RELEASE (NACHI)

1 - -
13 22871-634-000 22871-634-000 / STAY, CLUTCH WIRE

1 - -
14 22080-634-670 22080-634-670 / BRACKET, CLUTCH CABLE

1 - -
14 22873-634-673 22873-634-673 / HOLDER, CLUTCH WIRE

1 - -
14 22873-634-672 22873-634-672 / BRACKET, CLUTCH CABLE

1 - -
15 22875-634-670 22875-634-670 / BRACKET, CLUTCH CABLE

1 - -
15 22874-634-670 22874-634-670 / BRACKET, CLUTCH CABLE

1 - -
16 90011-689-000 90011-689-000 / BOLT, HEX. (10MM)

6 $5.45 $3.92
17 90029-611-010 90029-611-010 / BOLT, HEX. (8X24)

1 $5.12 $3.68
18 90406-PS1-000 90406-PS1-000 / WASHER, LOCK

1 $2.62 $1.88
19 90706-634-000 90706-634-000 / ROLLER (6x13)

2 - -
20 91006-634-008 91006-634-008 / BEARING, CLUTCH PILOT (NTN)

1 $23.17 $16.68
21 92101-08020-0H 92101-08020-0H / BOLT, HEX. (8X20)

2 $0.88 $0.64
21 92101-08035-0H 92101-08035-0H / BOLT, HEX. (8X35)

1 $1.12 $0.80
22 93500-06010-0H 93500-06010-0H / SCREW, PAN (6X10)

4 $0.57 $0.41
23 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

1 $1.10 $0.79
24 94111-08800 94111-08800 / WASHER, SPRING (8MM)

1 $0.53 $0.38
25 95701-06018-08 95701-06018-08 / BOLT, FLANGE (6X18)

8 $0.88 $0.64
