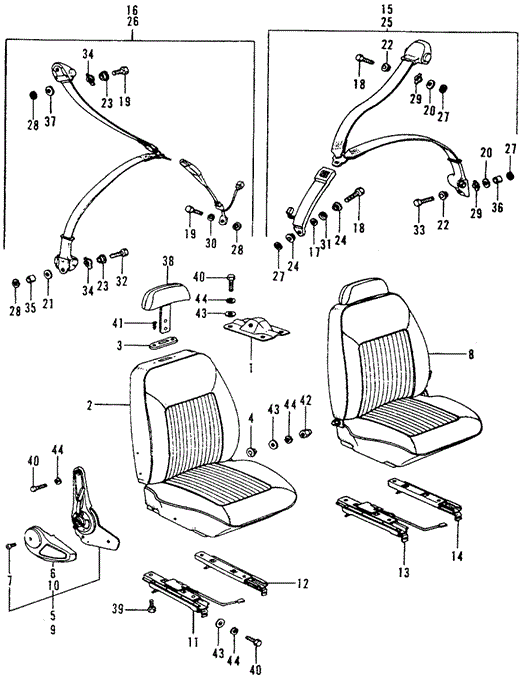

SEAT ASSY., L. FR. *NH1L* (BLACK) in INTERIOR / BUMPER/FRONT SEAT - SEAT BELT ('73-'74) for 1973 Honda CIVIC 1200 COUPE

SEAT ASSY., L. FR. *NH1L* (BLACK) in INTERIOR / BUMPER/FRONT SEAT - SEAT BELT ('73-'74) for 1973 Honda CIVIC 1200 COUPE #1
32
  • BOLT, ANCHOR (NSK)
1
  • ANCHOR, BELT CENTER
34
  • WASHER, SPRING (NIPPON SEIKO)
44
  • WASHER, SPRING (8MM) - $0.38
28
  • WASHER, TOOTHED (NIPPON SEIKO)
35
  • COLLAR A (NSK)
37
  • WASHER (NSK)
2
  • SEAT ASSY., R. FR. *NH1L* (BLACK)
27
  • WASHER, TOOTHED (TAKATA)
21
  • WASHER
4
  • BUSH, NYLON
24
  • BUSH, SEAT BELT SETTING
7
  • SCREW, COVER MOUNTING
28
  • WASHER, TOOTHED (NIPPON SEIKO)
34
  • WASHER, SPRING (NIPPON SEIKO)
23
  • BUSH
11
  • ADJUSTER ASSY. A, R. FR. SEAT
10
  • COVER, L. RECLINING ADJUSTER
19
  • BOLT, ANCHOR (NSK)
6
  • COVER, R. RECLINING ADJUSTER
18
  • BOLT (7/16x28)
41
  • SCREW, TAPPING (3X12)
27
  • WASHER, TOOTHED (TAKATA)
19
  • BOLT, ANCHOR (NSK)
31
  • WASHER, SPECIAL (TAKATA)
39
  • BOLT, HEX. (8X14)
28
  • WASHER, TOOTHED (NIPPON SEIKO)
22
  • BUSHING, SEAT BELT SETTING (TAKATA)
16
  • SEAT BELT, FR. - $387.74
8
  • SEAT ASSY., L. FR. *NH1L* (BLACK)
36
  • COLLAR A (TAKATA)
17
  • WASHER, PLASTIC (1.0MM)
29
  • WASHER, WAVE (TAKATA)
29
  • WASHER, WAVE (TAKATA)
42
  • NUT, CAP (8MM) - $0.48
38
  • RESTRAINT, HEAD *NH1L* (BLACK)
18
  • BOLT (7/16x28)
44
  • WASHER, SPRING (8MM) - $0.38
30
  • WASHER, SPRING (NIPPON SEIKO)
5
  • ADJUSTER, R. RECLINING
9
  • ADJUSTER ASSY., L. RECLINING
27
  • WASHER, TOOTHED (TAKATA)
20
  • WASHER, SEAT BELT SETTING
43
  • WASHER, PLAIN (8MM) - $0.79
24
  • BUSH, SEAT BELT SETTING
14
  • ADJUSTER ASSY. B, L. FR. SEAT
12
  • ADJUSTER ASSY. A, L. FR. SEAT
33
  • BOLT, SEAT BELT SETTING
43
  • WASHER, PLAIN (8MM) - $0.79
40
  • BOLT, HEX. (8X20) - $0.64
13
  • ADJUSTER ASSY. B, R. FR. SEAT
23
  • BUSH
20
  • WASHER, SEAT BELT SETTING
22
  • BUSHING, SEAT BELT SETTING (TAKATA)
44
  • WASHER, SPRING (8MM) - $0.38
3
  • CAP, PILOT
43
  • WASHER, PLAIN (8MM) - $0.79
44
  • WASHER, SPRING (8MM) - $0.38
40
  • BOLT, HEX. (8X20) - $0.64
40
  • BOLT, HEX. (8X20) - $0.64
No. Part # Part # / Description Qty Req. List Price Price
1 70225-634-000 70225-634-000 / ANCHOR, BELT CENTER

1 - -
2 77200-634-673A 77200-634-673A / SEAT ASSY., R. FR. *NH1L* (BLACK)

1 - -
3 77206-634-670 77206-634-670 / CAP, PILOT

2 - -
4 77208-671-003 77208-671-003 / BUSH, NYLON

2 - -
5 77251-634-014 77251-634-014 / ADJUSTER, R. RECLINING

1 - -
6 77252-611-892 77252-611-892 / COVER, R. RECLINING ADJUSTER

1 - -
7 77253-611-004 77253-611-004 / SCREW, COVER MOUNTING

2 - -
8 77400-634-673A 77400-634-673A / SEAT ASSY., L. FR. *NH1L* (BLACK)

1 - -
9 77451-634-671 77451-634-671 / ADJUSTER ASSY., L. RECLINING

1 - -
10 77452-611-892 77452-611-892 / COVER, L. RECLINING ADJUSTER

1 - -
11 77510-634-673 77510-634-673 / ADJUSTER ASSY. A, R. FR. SEAT

1 - -
12 77520-634-673 77520-634-673 / ADJUSTER ASSY. A, L. FR. SEAT

1 - -
13 77530-634-672 77530-634-672 / ADJUSTER ASSY. B, R. FR. SEAT

1 - -
14 77540-634-672 77540-634-672 / ADJUSTER ASSY. B, L. FR. SEAT

1 - -
16 77610-634-315 77610-634-315 / SEAT BELT, FR.

2 $538.54 $387.74
17 77614-634-004 77614-634-004 / WASHER, PLASTIC (1.0MM)

2 - -
18 77617-611-004 77617-611-004 / BOLT (7/16x28)

4 - -
19 77617-634-003 77617-634-003 / BOLT, ANCHOR (NSK)

4 - -
20 77618-611-004 77618-611-004 / WASHER, SEAT BELT SETTING

4 - -
21 77618-634-003 77618-634-003 / WASHER

2 - -
22 77619-611-004 77619-611-004 / BUSHING, SEAT BELT SETTING (TAKATA)

4 - -
23 77619-634-003 77619-634-003 / BUSH

4 - -
24 77619-634-004 77619-634-004 / BUSH, SEAT BELT SETTING

4 - -
27 77621-611-004 77621-611-004 / WASHER, TOOTHED (TAKATA)

6 - -
28 77621-634-003 77621-634-003 / WASHER, TOOTHED (NIPPON SEIKO)

6 - -
29 77623-611-004 77623-611-004 / WASHER, WAVE (TAKATA)

4 - -
30 77623-634-003 77623-634-003 / WASHER, SPRING (NIPPON SEIKO)

2 - -
31 77624-634-004 77624-634-004 / WASHER, SPECIAL (TAKATA)

2 - -
32 77626-634-003 77626-634-003 / BOLT, ANCHOR (NSK)

2 - -
33 77626-634-004 77626-634-004 / BOLT, SEAT BELT SETTING

2 - -
34 77627-634-003 77627-634-003 / WASHER, SPRING (NIPPON SEIKO)

4 - -
35 77629-634-003 77629-634-003 / COLLAR A (NSK)

2 - -
36 77629-634-004 77629-634-004 / COLLAR A (TAKATA)

2 - -
37 77631-634-003 77631-634-003 / WASHER (NSK)

2 - -
38 77800-634-660A 77800-634-660A / RESTRAINT, HEAD *NH1L* (BLACK)

2 - -
39 90108-504-000 90108-504-000 / BOLT, HEX. (8X14)

8 - -
40 92101-08020-0A 92101-08020-0A / BOLT, HEX. (8X20)

20 $0.88 $0.64
41 93902-22380 93902-22380 / SCREW, TAPPING (3X12)

4 - -
42 94021-08000-0S 94021-08000-0S / NUT, CAP (8MM)

2 $0.67 $0.48
43 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

8 $1.10 $0.79
44 94111-08800 94111-08800 / WASHER, SPRING (8MM)

20 $0.53 $0.38
