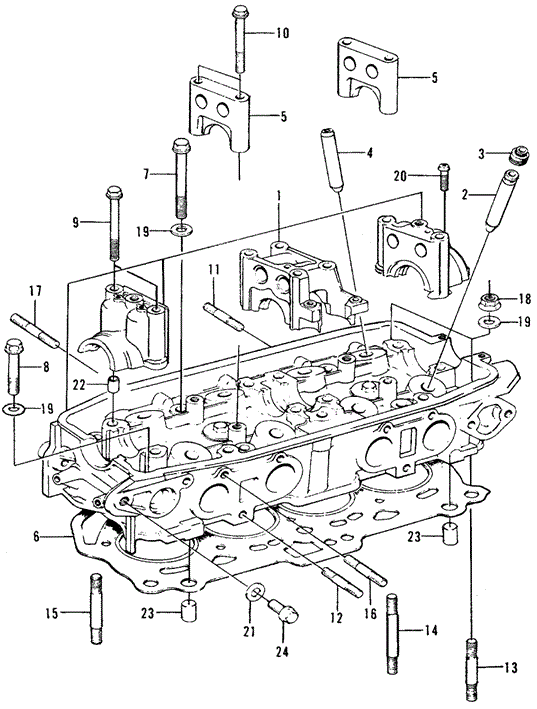

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD for 1973 Honda CIVIC 1200 COUPE

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD for 1973 Honda CIVIC 1200 COUPE #1
17
  • BOLT, STUD (8x50MM) - $2.33
10
  • BOLT, FLANGE (8X70)
21
  • WASHER, PLAIN (10MM) - $0.80
11
  • BOLT, STUD (8x40MM)
24
  • BOLT, FLANGE (10X16) - $0.90
23
  • PIN B, DOWEL (12x20)
22
  • PIN, DOWEL (10X16) - $0.96
2
  • GUIDE, VALVE - $11.92
20
  • SCREW, PAN (6X20) - $0.43
12
  • BOLT, STUD (8x45MM)
13
  • BOLT, STUD (10x74MM)
  • BOLT, STUD (10x74MM)
8
  • BOLT, FLANGE (10x65)
4
  • GUIDE, EX. VALVE
9
  • BOLT, FLANGE (8X77) - $3.40
1
  • CYLINDER HEAD ASSY.
23
  • PIN B, DOWEL (12x20)
5
  • HOLDER, VALVE ROCKER ARM SHAFT
14
  • BOLT, STUD (10x115MM)
3
  • SEAL A, VALVE STEM
7
  • BOLT, FLANGE (10x105)
5
  • HOLDER, VALVE ROCKER ARM SHAFT
15
  • BOLT, STUD (10x105MM) - $5.99
16
  • BOLT, STUD (8x47MM)
19
  • WASHER (21X11X2.3)
6
  • GASKET, CYLINDER HEAD - $28.40
18
  • NUT, FLANGE (10MM) - $0.78
19
  • WASHER (21X11X2.3)
19
  • WASHER (21X11X2.3)
No. Part # Part # / Description Qty Req. List Price Price
1 12100-634-010 12100-634-010 / CYLINDER HEAD ASSY.

1 - -
2 12208-634-000 12208-634-000 / GUIDE, VALVE

4 $16.55 $11.92
3 12210-657-003 12210-657-003 / SEAL A, VALVE STEM

4 - -
4 12209-634-000 12209-634-000 / GUIDE, EX. VALVE

4 - -
5 12237-634-000 12237-634-000 / HOLDER, VALVE ROCKER ARM SHAFT

2 - -
6 12251-642-030 12251-642-030 / GASKET, CYLINDER HEAD

1 $39.45 $28.40
7 90003-PB9-003 90003-PB9-003 / BOLT, FLANGE (10x105)

6 - -
8 90004-634-003 90004-634-003 / BOLT, FLANGE (10x65)

1 - -
9 90005-634-003 90005-634-003 / BOLT, FLANGE (8X77)

8 $4.71 $3.40
10 90007-634-000 90007-634-000 / BOLT, FLANGE (8X70)

4 - -
11 90020-634-000 90020-634-000 / BOLT, STUD (8x40MM)

6 - -
12 90021-634-000 90021-634-000 / BOLT, STUD (8x45MM)

5 - -
13 90023-PB9-003 90023-PB9-003 / BOLT, STUD (10x74MM)

1 - -
13 90023-PB9-003 90023-PB9-003 / BOLT, STUD (10x74MM)

1 - -
14 90024-PB9-003 90024-PB9-003 / BOLT, STUD (10x115MM)

1 - -
15 90025-PB9-003 90025-PB9-003 / BOLT, STUD (10x105MM)

1 $8.32 $5.99
16 90026-634-000 90026-634-000 / BOLT, STUD (8x47MM)

1 - -
17 90027-634-000 90027-634-000 / BOLT, STUD (8x50MM)

2 $3.24 $2.33
18 94050-10000 94050-10000 / NUT, FLANGE (10MM)

3 $1.08 $0.78
19 90438-634-000 90438-634-000 / WASHER (21X11X2.3)

10 - -
20 93500-06020-0H 93500-06020-0H / SCREW, PAN (6X20)

2 $0.60 $0.43
21 94102-10800 94102-10800 / WASHER, PLAIN (10MM)

2 $1.12 $0.80
22 94301-10160 94301-10160 / PIN, DOWEL (10X16)

6 $1.33 $0.96
23 94302-12200 94302-12200 / PIN B, DOWEL (12x20)

2 - -
24 95701-10016-08 95701-10016-08 / BOLT, FLANGE (10X16)

2 $1.25 $0.90
