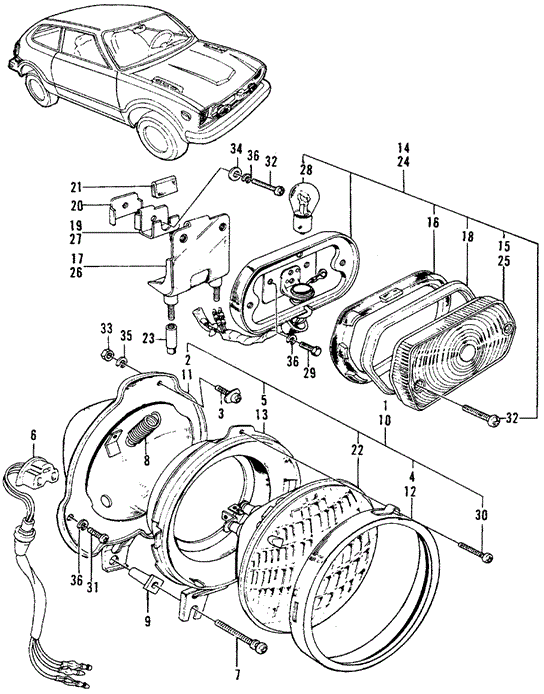

HEADLIGHT ASSY., L. in ELECTRICAL / EXHAUST / HEATER / FUEL/HEADLIGHT - FRONT COMBINATION LIGHT ('73-'74) for 1973 Honda CIVIC 1200 COUPE

HEADLIGHT ASSY., L. in ELECTRICAL / EXHAUST / HEATER / FUEL/HEADLIGHT - FRONT COMBINATION LIGHT ('73-'74) for 1973 Honda CIVIC 1200 COUPE #1
15
  • LENS, R. FR. COMBINATION LIGHT
11
  • CASE, L. HEADLIGHT
27
  • PLATE A, R. COMBINATION LIGHT
5
  • RING, R. SETTING
23
  • NUT, COMBINATION BRACKET
7
  • SCREW, ADJUSTING
29
  • BOLT, HEX. (5X20) - $0.46
14
  • LIGHT ASSY., R. FR. COMBINATION
20
  • PLATE B SET
36
  • WASHER, SPRING (5MM) - $0.43
4
  • RING, R. RETAINER
36
  • WASHER, SPRING (5MM) - $0.43
22
  • UNIT, SEALED BEAM (STANLEY) - $7.38
8
  • SPRING, ADJUSTING
28
  • BULB, STOP & TAILLIGHT (12V 27/7W) - $2.10
34
  • WASHER, PLAIN (5MM) - $0.38
21
  • RUBBER, RETAINER
26
  • BRACKET, L. COMBINATION LIGHT
30
  • SCREW, PAN (4X20) - $0.43
13
  • RING, L. SETTING
32
  • SCREW, PAN (5X30) - $0.78
31
  • SCREW, PAN (5X16) - $0.40
2
  • CASE, R. HEADLIGHT
10
  • HEADLIGHT ASSY., L.
12
  • RING, L. RETAINER
33
  • NUT, HEX. (5MM) - $0.34
1
  • HEADLIGHT ASSY., R.
24
  • LIGHT ASSY., L. FR. COMBINATION
16
  • GASKET, FR. COMBINATION LIGHT
9
  • NUT, NYLON CAP
35
  • WASHER, SPRING (5MM) - $0.43
19
  • PLATE A, R. COMBINATION LIGHT RETAINING
17
  • BRACKET, R. COMBINATION LIGHT
18
  • RIM, COMBINATION LIGHT
6
  • SOCKET, HEADLIGHT
25
  • LENS, R. FR. COMBINATION LIGHT
32
  • SCREW, PAN (5X30) - $0.78
36
  • WASHER, SPRING (5MM) - $0.43
3
  • SCREW, HEADLIGHT ADJUSTING
No. Part # Part # / Description Qty Req. List Price Price
1 33100-634-667 33100-634-667 / HEADLIGHT ASSY., R.

1 - -
2 33101-568-672 33101-568-672 / CASE, R. HEADLIGHT

1 - -
3 33101-634-670 33101-634-670 / SCREW, HEADLIGHT ADJUSTING

2 - -
4 33102-568-672 33102-568-672 / RING, R. RETAINER

1 - -
5 33103-568-672 33103-568-672 / RING, R. SETTING

1 - -
6 33114-568-671 33114-568-671 / SOCKET, HEADLIGHT

2 - -
7 33143-568-671 33143-568-671 / SCREW, ADJUSTING

4 - -
8 33144-568-671 33144-568-671 / SPRING, ADJUSTING

2 - -
9 33145-568-670 33145-568-670 / NUT, NYLON CAP

2 - -
10 33150-634-667 33150-634-667 / HEADLIGHT ASSY., L.

1 - -
11 33151-568-672 33151-568-672 / CASE, L. HEADLIGHT

1 - -
12 33152-568-672 33152-568-672 / RING, L. RETAINER

1 - -
13 33153-568-672 33153-568-672 / RING, L. SETTING

1 - -
14 33300-634-671 33300-634-671 / LIGHT ASSY., R. FR. COMBINATION

1 - -
25 33302-568-003 33302-568-003 / LENS, R. FR. COMBINATION LIGHT

1 - -
16 33303-568-003 33303-568-003 / GASKET, FR. COMBINATION LIGHT

2 - -
17 33304-634-670 33304-634-670 / BRACKET, R. COMBINATION LIGHT

1 - -
18 33305-568-003 33305-568-003 / RIM, COMBINATION LIGHT

2 - -
19 33305-634-670 33305-634-670 / PLATE A, R. COMBINATION LIGHT RETAINING

1 - -
20 33306-634-670 33306-634-670 / PLATE B SET

2 - -
21 33307-634-670 33307-634-670 / RUBBER, RETAINER

2 - -
22 33321-568-671AH 33321-568-671AH / UNIT, SEALED BEAM (STANLEY)

2 $10.25 $7.38
23 90145-634-670 90145-634-670 / NUT, COMBINATION BRACKET

4 - -
24 33350-634-671 33350-634-671 / LIGHT ASSY., L. FR. COMBINATION

1 - -
26 33354-634-670 33354-634-670 / BRACKET, L. COMBINATION LIGHT

1 - -
27 33355-634-670 33355-634-670 / PLATE A, R. COMBINATION LIGHT

1 - -
28 34906-MG9-771 34906-MG9-771 / BULB, STOP & TAILLIGHT (12V 27/7W)

2 $2.92 $2.10
29 92101-05020-0H 92101-05020-0H / BOLT, HEX. (5X20)

2 $0.63 $0.46
30 93500-04020-3B 93500-04020-3B / SCREW, PAN (4X20)

2 $0.60 $0.43
31 93500-05016-0A 93500-05016-0A / SCREW, PAN (5X16)

4 $0.55 $0.40
32 93500-05030-4J 93500-05030-4J / SCREW, PAN (5X30)

4 $1.08 $0.78
33 94001-05000-0S 94001-05000-0S / NUT, HEX. (5MM)

2 $0.47 $0.34
34 94101-05800 94101-05800 / WASHER, PLAIN (5MM)

6 $0.53 $0.38
35 94111-05000 94111-05000 / WASHER, SPRING (5MM)

2 $0.60 $0.43
36 94111-05800 94111-05800 / WASHER, SPRING (5MM)

6 $0.60 $0.43
