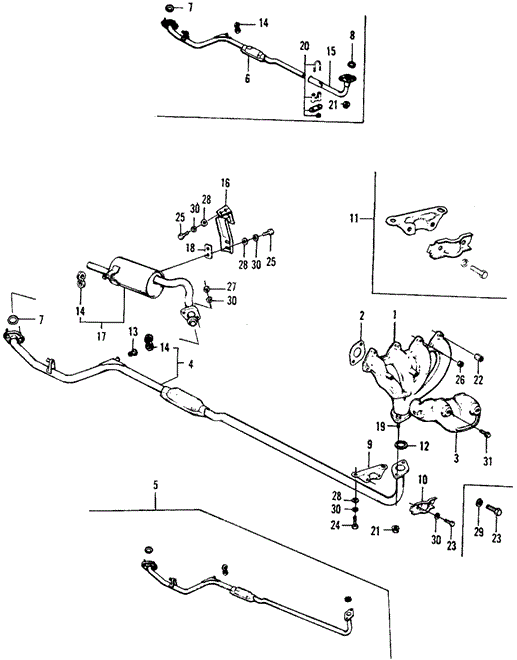

PIPE, EX. in ELECTRICAL / EXHAUST / HEATER / FUEL/EXHAUST MANIFOLD - EXHAUST PIPE ('73-'74) for 1973 Honda CIVIC 1200 COUPE

PIPE, EX. in ELECTRICAL / EXHAUST / HEATER / FUEL/EXHAUST MANIFOLD - EXHAUST PIPE ('73-'74) for 1973 Honda CIVIC 1200 COUPE #1
14
  • RUBBER, MUFFLER MOUNTING
4
  • PIPE, EX.
28
  • WASHER, PLAIN (8MM) - $0.79
2
  • GASKET, EX. PIPE
30
  • WASHER, SPRING (8MM) - $0.38
17
  • MUFFLER SET
23
  • BOLT, HEX. (6X16) - $0.56
14
  • RUBBER, MUFFLER MOUNTING
23
  • BOLT, HEX. (6X16) - $0.56
7
  • GASKET, EX. PIPE - $4.98
  • GASKET, EX. PIPE - $4.34
28
  • WASHER, PLAIN (8MM) - $0.79
28
  • WASHER, PLAIN (8MM) - $0.79
1
  • MANIFOLD, EX. - $100.25
30
  • WASHER, SPRING (8MM) - $0.38
30
  • WASHER, SPRING (8MM) - $0.38
20
  • U-BOLT (T112) - $0.50
27
  • NUT, HEX. (8MM) - $0.43
25
  • BOLT, HEX. (8X20) - $0.64
29
  • WASHER, SPRING (6MM) - $0.43
30
  • WASHER, SPRING (8MM) - $0.38
18
  • INSULATOR, MUFFLER
19
  • BOLT, STUD (8x35MM)
31
  • BOLT, FLANGE (6X12) - $0.72
7
  • GASKET, EX. PIPE - $4.98
  • GASKET, EX. PIPE - $4.34
26
  • NUT, HEX. (8MM) - $0.43
11
  • BRACKET ASSY., EX. PIPE
10
  • RETAINER, EX. PIPE
3
  • GUIDE, HOT AIR
16
  • MOUNT, MUFFLER
14
  • RUBBER, MUFFLER MOUNTING
24
  • BOLT, HEX. (8X16) - $0.60
25
  • BOLT, HEX. (8X20) - $0.64
30
  • WASHER, SPRING (8MM) - $0.38
22
  • NUT, HEX. (8MM)
9
  • BRACKET, EX. PIPE
No. Part # Part # / Description Qty Req. List Price Price
1 18100-634-010 18100-634-010 / MANIFOLD, EX.

1 $139.22 $100.25
2 18110-PA1-000 18110-PA1-000 / GASKET, EX. PIPE

4 - -
3 18120-634-000 18120-634-000 / GUIDE, HOT AIR

1 - -
4 18210-634-670 18210-634-670 / PIPE, EX.

1 - -
7 18216-634-000 18216-634-000 / GASKET, EX. PIPE

2 $6.92 $4.98
7 18212-634-010 18212-634-010 / GASKET, EX. PIPE

2 $6.03 $4.34
9 18213-634-020 18213-634-020 / BRACKET, EX. PIPE

1 - -
10 18214-634-020 18214-634-020 / RETAINER, EX. PIPE

1 - -
11 18215-634-305 18215-634-305 / BRACKET ASSY., EX. PIPE

1 - -
14 18234-579-000 18234-579-000 / RUBBER, MUFFLER MOUNTING

2 - -
16 18305-634-930 18305-634-930 / MOUNT, MUFFLER

1 - -
17 18307-634-305 18307-634-305 / MUFFLER SET

1 - -
18 18342-634-010 18342-634-010 / INSULATOR, MUFFLER

1 - -
19 90072-657-000 90072-657-000 / BOLT, STUD (8x35MM)

2 - -
20 90124-634-305 90124-634-305 / U-BOLT (T112)

2 $0.69 $0.50
22 90205-634-000 90205-634-000 / NUT, HEX. (8MM)

1 - -
23 92101-06016-0H 92101-06016-0H / BOLT, HEX. (6X16)

2 $0.78 $0.56
24 92101-08016-0H 92101-08016-0H / BOLT, HEX. (8X16)

4 $0.83 $0.60
25 92101-08020-0H 92101-08020-0H / BOLT, HEX. (8X20)

4 $0.88 $0.64
27 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

2 $0.60 $0.43
28 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

6 $1.10 $0.79
29 94111-06800 94111-06800 / WASHER, SPRING (6MM)

2 $0.60 $0.43
30 94111-08800 94111-08800 / WASHER, SPRING (8MM)

14 $0.53 $0.38
31 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

2 $1.00 $0.72
