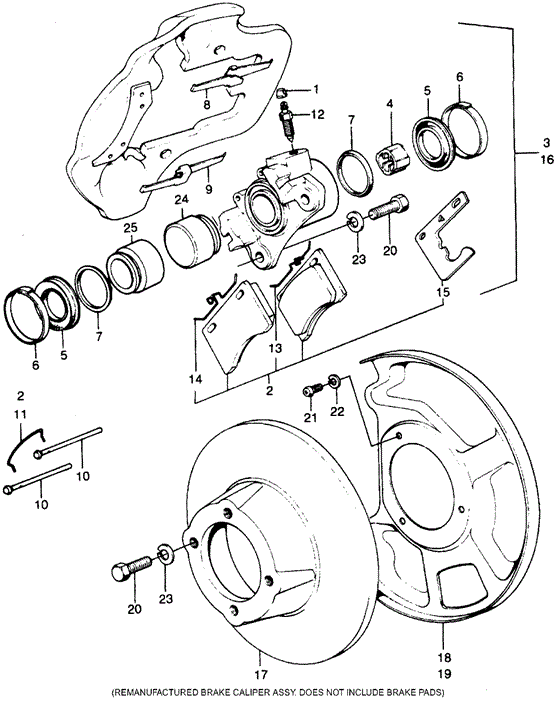

CALIPER ASSY., R. in CHASSIS/DISK BRAKE ('73-'74) for 1973 Honda CIVIC 1200 COUPE

CALIPER ASSY., R. in CHASSIS/DISK BRAKE ('73-'74) for 1973 Honda CIVIC 1200 COUPE #1
1
  • CAP, BLEEDER SCREW - $2.09
6
  • RING, RETAINING
9
  • SPRING B, YOKE
14
  • SPRING B, PAD
2
  • PAD SET, FR.
  • BRAKE PAD KIT, DISK
2
  • PAD SET, FR.
  • BRAKE PAD KIT, DISK
15
  • SHIM, BRAKE PAD
7
  • SEAL, PISTON - $14.24
23
  • WASHER, SPRING (10MM) - $0.46
17
  • DISK, FR. BRAKE
19
  • SPLASH GUARD, L. FR. BRAKE
20
  • BOLT, HEX. (10X26)
6
  • RING, RETAINING
4
  • RING, BIAS
3
  • CALIPER ASSY., R. - $440.30
7
  • SEAL, PISTON - $14.24
8
  • SPRING A, YOKE
16
  • CALIPER ASSY., L. - $440.30
21
  • SCREW, PAN (6X12) - $0.43
24
  • PISTON A
5
  • BOOT, PISTON
5
  • BOOT, PISTON
18
  • SPLASH GUARD, R. FR. BRAKE
13
  • SPRING A, PAD
11
  • CLIP, PAD RETAINING
10
  • PIN, PAD RETAINING
12
  • SCREW, BLEEDER
20
  • BOLT, HEX. (10X26)
23
  • WASHER, SPRING (10MM) - $0.46
25
  • PISTON B
22
  • WASHER, SPRING (6MM) - $0.43
10
  • PIN, PAD RETAINING
No. Part # Part # / Description Qty Req. List Price Price
1 43353-548-003 43353-548-003 / CAP, BLEEDER SCREW

2 $2.90 $2.09
2 45022-634-N52 45022-634-N52 / PAD SET, FR.

1 - -
2 45022-634-N52 45022-634-N52 / BRAKE PAD KIT, DISK

1 - -
3 45210-634-672 45210-634-672 / CALIPER ASSY., R.

1 $611.53 $440.30
4 45213-634-920 45213-634-920 / RING, BIAS

2 - -
5 45214-579-003 45214-579-003 / BOOT, PISTON

4 - -
6 45215-579-003 45215-579-003 / RING, RETAINING

4 - -
7 45217-579-003 45217-579-003 / SEAL, PISTON

4 $19.78 $14.24
8 45218-634-920 45218-634-920 / SPRING A, YOKE

2 - -
9 45219-634-920 45219-634-920 / SPRING B, YOKE

2 - -
10 45220-657-671 45220-657-671 / PIN, PAD RETAINING

4 - -
11 45222-634-920 45222-634-920 / CLIP, PAD RETAINING

2 - -
12 45224-533-004 45224-533-004 / SCREW, BLEEDER

2 - -
13 45226-634-920 45226-634-920 / SPRING A, PAD

2 - -
14 45227-634-920 45227-634-920 / SPRING B, PAD

2 - -
15 45228-634-003 45228-634-003 / SHIM, BRAKE PAD

2 - -
16 45230-634-672 45230-634-672 / CALIPER ASSY., L.

1 $611.53 $440.30
17 45251-634-921 45251-634-921 / DISK, FR. BRAKE

2 - -
18 45255-634-920 45255-634-920 / SPLASH GUARD, R. FR. BRAKE

1 - -
19 45256-634-920 45256-634-920 / SPLASH GUARD, L. FR. BRAKE

1 - -
20 90107-579-000 90107-579-000 / BOLT, HEX. (10X26)

12 - -
21 93500-06012-0A 93500-06012-0A / SCREW, PAN (6X12)

4 $0.60 $0.43
22 94111-06800 94111-06800 / WASHER, SPRING (6MM)

4 $0.60 $0.43
23 94111-10800 94111-10800 / WASHER, SPRING (10MM)

4 $0.63 $0.46
24 45212-579-003 45212-579-003 / PISTON A

2 - -
25 45216-579-003 45216-579-003 / PISTON B

2 - -
